Manufacturing and Precision Engineering
The IBC steel pallet corner spacers are manufactured through a controlled, multi-stage process that ensures accuracy and reliability. Production starts with pre-galvanized steel coils to ensure corrosion resistance is built-in. The process flows through sequence of automated metal work: die-cutting to blank the part, deep drawing to form its profile, stamping to add structural features, and punching to create assembly points. The output is a ready-to-weld part for rapid integration into IBC pallet production lines.
Innovative Structural Design

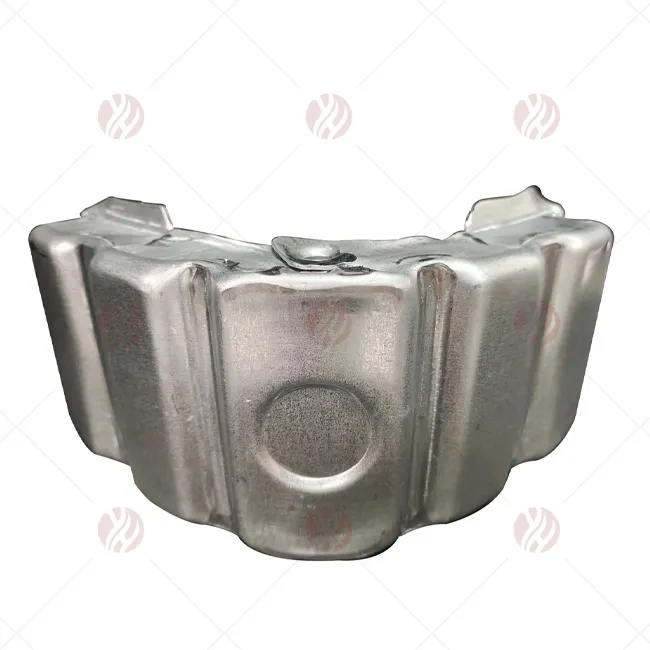

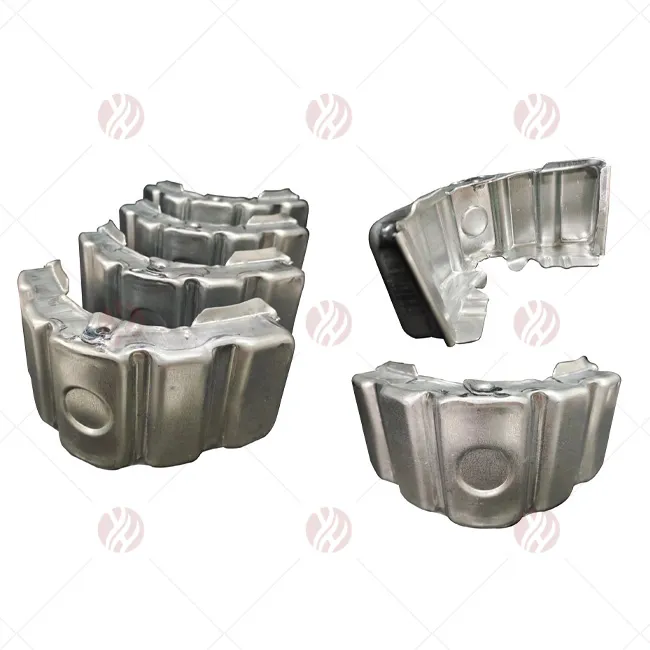

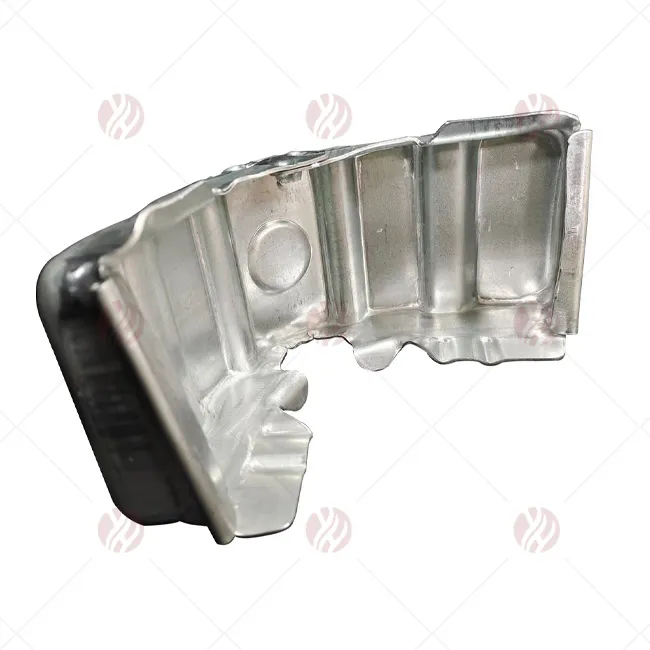

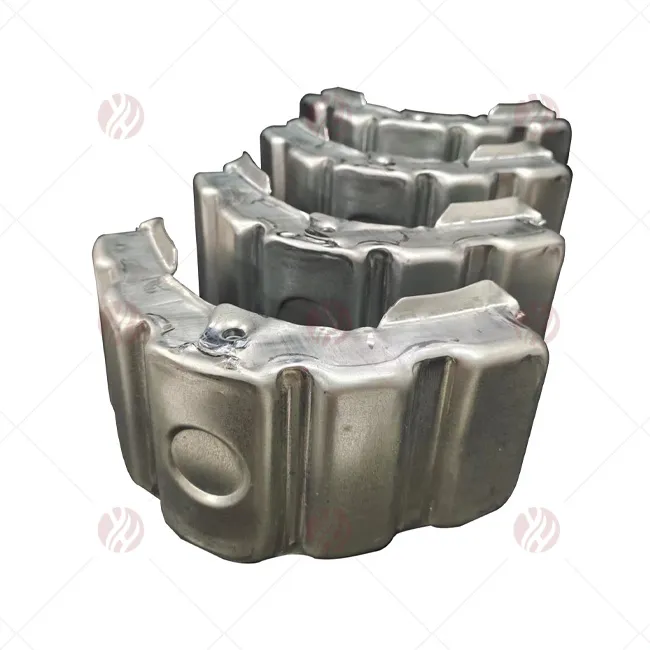

Designed to meet the performance criteria, the spacer sizes 192mm wide by 91mm deep and contours to the IBC pallet's four corners. Its advantageous feature is a deep-drawn "curl design" that acts as a protective bumper. In traffic heavy industrial and warehouse environments, where pallets endure frequent contacts with forklifts and pallet jacks, this reinforced curled edge absorbs shocks and redirects impact energy. This design minimizes damage and safeguards the pallet's structure.
Logistical Efficiency
The vertical dimension of the spacer is at a height of 80mm. This measurement is strategic, designed to optimize the total height of the finished IBC tank so that it loads efficiently inside standard shipping containers. By minimizing total vertical height, these spacers contribute to higher load quantities.
Assembly
For assembly, the IBC steel pallet corner is punctured with M8 self-tapping screw draws. This feature is thought-out for automated, conveyor-style assembly lines.
Material Standards and Compliance
Material specifications meet premium industry benchmarks. The 1.4mm steel thickness delivers exceptional strength. Combined with an 80 g/m² zinc coating for long-term corrosion and weather resistance-critical for outdoor or humid storage-these features ensure the spacers support the complete IBC unit in meeting compulsory UN performance standards. This certification is essential for the safe transport of all liquid goods.
Technical parameters
|
PRODUCT FEATURES |
||
|
Protection against collisions with pallet jacks |
||
|
TECHNICAL PARAMETERS |
||
|
THICKNESS |
1.4mm |
Standard |
|
ZINC CODING |
Z80 (>80g/㎡) |
|
|
SPECIFICATION |
192mm |
|
|
HEIGHT |
80mm |
|
|
SCREW DRAW |
M8 SELF-TAPPING |
|
FAQ
Q:Pallet jacks often collide with these corners; when accidents occur, they often bend the corners.
A:We have redesigned these corners with a curl. This design offers better protection against collisions with pallet jacks, preventing accidental bending of the corners.
