The strength and durability begin with the material. The IBC ID plate is formed from a sheet of pre-galvanized steel, expertly rolled to a thickness of 0.5 millimeters. This creates a component that is remarkably strong without being heavy. But strength alone isn't enough, the steel is given a zinc coating of 80 grams per square meter to shield against rust.
Building each plate is an automated process. It all begins with a large coil of this zinc-protected steel. The coil is first fed through a die, which cleanly cuts the steel into the proper rectangular shape. Next, each panel moves to a stamping press. This step does two things: it adds crucial rigidity to the metal, and it can simultaneously press the manufacturer's logo into the surface with a clean, permanent emboss. Finally, precision machines punch out the mounting holes. The result is a perfectly consistent plate, ready for immediate assembly.

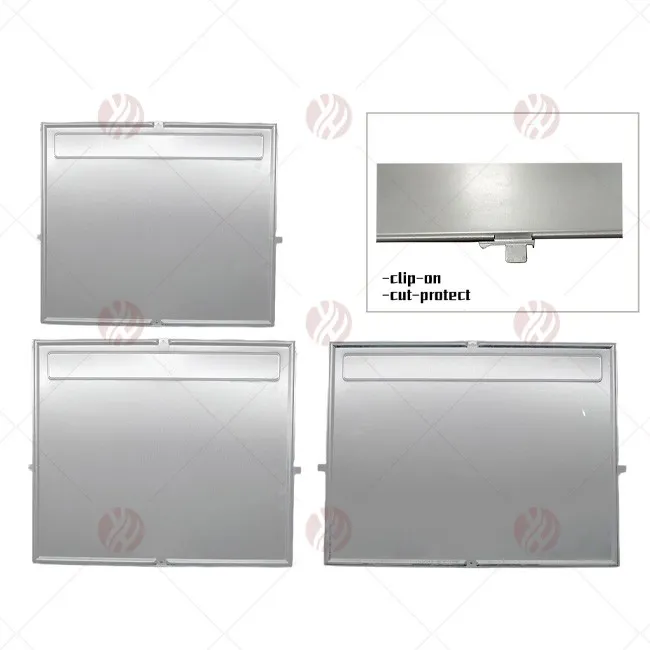

Now, this particular model features two smart upgrades that set it apart. The first is its ingenious clip-on design. Unlike older plates that required screws and tools, this one simply clips securely onto the IBC steel cage pipes. The finished piece, called the IBC clip-on back plate, measures 510 by 422 millimeters. This size is no accident; it's perfectly fitted to latch onto two cross sections of the cage's horizontal and vertical pipes, neatly covering four squares of the rear wire grid. This not only makes installation quick but gives the container a clean, professional look.
The second standout feature is a perimeter flange. Leaving sharp edges poses laceration risk, the sides of the steel are rolled to create a smooth profile. This upgrade eliminates dangerous burrs, and making the workplace safer.
Technical parameters
| PRODUCT FEATURES | ||
| This logo plate is designed to fit IBCs with a rounded-tube frame. | ||
| This logo plate is placed on the back of the IBC. | ||
| This logo plate has an embossed guide line for label placement. | ||
| This logo plate is installed using a clip-on mechanism; no screws are required. | ||
| The perimeter of the plate have a rounded edge so its cut-protected. | ||
| TECHNICAL PARAMETERS | ||
| THICKNESS | 0.5mm | Standard |
| ZINC CODING | Z80 (>80g/㎡) | |
| SPECIFICATION | 504mm * 422mm | |
FAQ
Q:I often receive complaints that the sides of the ID plates are too sharp, especially from the workshop during installation. Is there anything that can be done?
A:Yes. We have redesigned this plate. The new design rolls the perimeters of the plate to form a rounded edge. It is now cut-protected.
Q:I have seen a type of ID plate on the market that does not require screws for installation. Do you have this product?
A:Yes, we have redesigned this plate. The new design is now clip-on rather than screw lock.
